AC/DC

AC

Type

brushless

Voltage

230 V

Protection class

IP65

Configuration

permanent magnet

Number of poles

4-pole, 2-pole

Power

Max.:  293 W
(0.398 hp)

Min.:  32 W
(0.044 hp)

Torque

Max.:  2.1 Nm
(1.5489 ft.lb)

Min.:  0.075 Nm
(0.0553 ft.lb)

Rotational speed

4,000 rpm
(25,132.74 rad.min-1)

Operating temperature

Max.:  40 °C
(104 °F)

Min.:  0 °C
(32 °F)

Description

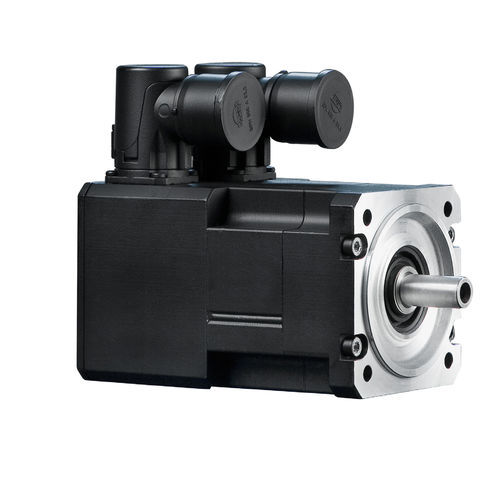

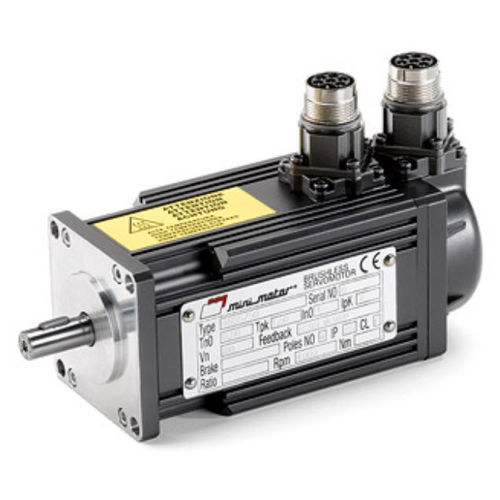

4-POLE SINUSOIDAL BRUSHLESS MOTOR WITH RESOLVER.

4 poles sinusoidal brushless motor, totally enclosed. Rotor with NdFeB magnets.Safety circuit breaker. Winding class F. IP65 protection according to CEI EN 60529 standards. Feedback with 2 pole resolver.
Reduced clearance bearings with special grease for high temperatures.

On request a 24 Vdc NC brake (normally closed) with permanent magnets may be supplied. It is identified by the letter K (BSK).
