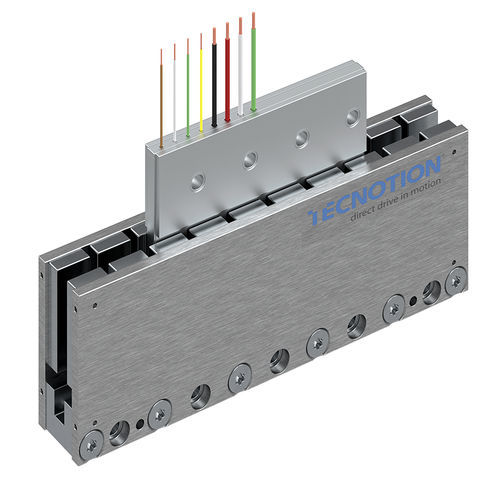

DC linear motor ULV G2 series
Characteristics Type DC, ironless Voltage 230 V, 320 V Other characteristics high-precision, high-performance, vacuum-compatible Speed Min.: 5 m/s(16.4 ft/s) Max.: 13.6 m/s(44.62 ft/s) Force 719 N, 720 N Description…
Linear motor
Linear motors are a type of electric motor that converts electrical energy into linear motion. They are designed to move in a straight line, rather than rotating like traditional motors.
Read More
DC linear servomotor AL200 series
Characteristics Type DC, synchronous Voltage 200-480 V, 100 V Other characteristics performance, robust, permanent magnet, three-phase Speed 7 m/s(22.97 ft/s) Force 225 N Description The primary parts…
DC linear servomotor LM
Characteristics Type DC Voltage 3 V Other characteristics high-performance, compact, permanent magnet Speed Max.: 3.4 m/s(11.15 ft/s) Min.: 1.8 m/s(5.91 ft/s) Force 1.03 N, 3.6 N, 6.2 N, 9.2…
Ironless linear motor ML 1 series
Characteristics Type ironless Other characteristics compact Speed Min.: 2.5 m/s(8.2 ft/s) Max.: 18 m/s(59.06 ft/s) Force Min.: 60 N Max.: 6,000 N Description Linear Motor Components For linear movements with high…
Iron-core linear motor Chiron series
Characteristics Type iron-core Voltage 690 V Other characteristics multipole, aluminum frame, large, three-phase Speed Max.: 31 m/s(101.71 ft/s) Min.: 0.1 m/s(0.33 ft/s) Force Max.: 5,100 N Min.: 65 N Description Iron…

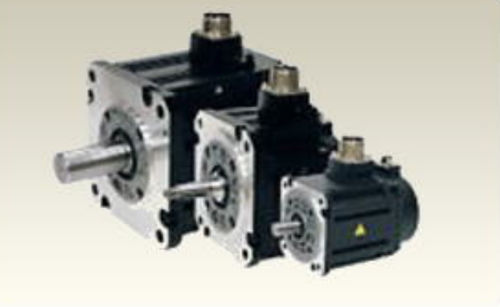

Stepper linear servomotor H series
Characteristics Type stepper Other characteristics high-speed, high-torque, direct-drive Description Nano-control compatible servo motor, well suited to various types of machines. Medium-inertia Motor HF Series Low-inertia Motor HF-KP…
Cooled linear motor LP/TF Series
Characteristics Other characteristics cooled, liquid-cooled, direct-drive, with electronic control Speed Max.: 3 m/s(9.84 ft/s) Min.: 0 m/s(0 ft/s) Force Max.: 20,000 N Min.: 1,000 N Description CHARACTERISTICS Electric direct drive Separate…
Flat linear motor KXAD series
Characteristics Type iron-core Voltage 24 V, 220 V, 48 V Other characteristics flat Force Max.: 10 kN Min.: 0.1 kN Power Max.: 10,000 W(13.596 hp) 200 W(0.272 hp) Min.: 10 W(0.014…
DC linear motor MCL series
Characteristics Type DC, iron-core, synchronous, ironless Voltage 400 V Other characteristics U-shaped, compact, small, three-phase, permanent magnet Speed Min.: 0 mm/min(0 in/s) Max.: 820,000 mm/min(538.06 in/s) Force Min.: 72 N…
DC linear motor LMM series
Characteristics Type DC Description INFRANOR’s Linear Motors are direct drives, capable of fast accelerations and high speeds, whilst providing unmatched precision and accuracy. Our linear motors are…
Brushless linear motor BLMX series
Characteristics Type DC, brushless, ironless Force Max.: 4,252 N Min.: 537 N Description The BLMX series “U-channel” brushless linear servomotors offer over 49% greater continuous output force in the…
DC linear motor LMA series
Characteristics Type DC, iron-core Voltage 36 V Other characteristics air-cooled Speed 15 m/s(49.21 ft/s) Force Max.: 3,650 N Min.: 175 N Stroke Max.: 376 mm(14.803 in) Min.: 200 mm(7.874 in) Description…

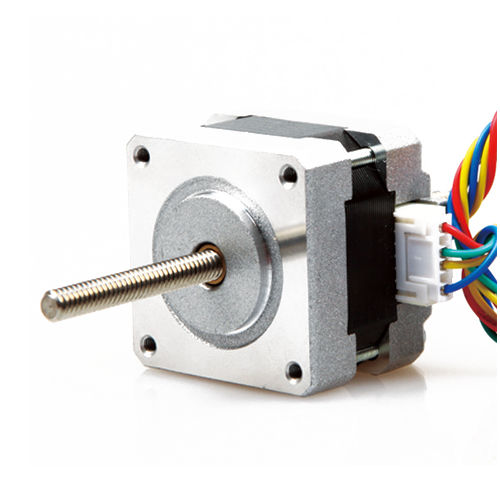

Hybrid stepper linear motor 16HSL series
Characteristics Type hybrid stepper Voltage 12 V Description Short Description: Step Accuracy……………………… 5% Temperature Rise……………………80℃ Max Ambient Temperature Range…………-20℃~+50℃ Insulation Resistance……………100MΩMin.500VC DC Dielectric Strength……………500V AC 1S Details…
Direct-drive linear motor KMC series
Characteristics Type iron-core, synchronous, ironless Voltage 400 V, 230 V, 380 V Other characteristics air-cooled, water-cooled, compact, three-phase, direct-drive Speed Max.: 36 m/s(118.11 ft/s) Min.: 1.5 m/s(4.92 ft/s) Force…
Two-phase stepper linear motor LA
Characteristics Type two-phase stepper Voltage 24 V Speed 1.5 mm/s Force 10 N Stroke 13 mm(0.512 in) Description Linear Actuator for Applications in Ultra-High-Vacuum and Cryogenic Environment…
DC linear motor LD series
Characteristics Type DC Other characteristics U-shaped, water-cooled, flat, direct-drive, coreless Power Min.: 12.1 W(0.016 hp) Max.: 250.8 W(0.341 hp) Description INFRANOR’s Linear Motors are direct drives, capable of fast…

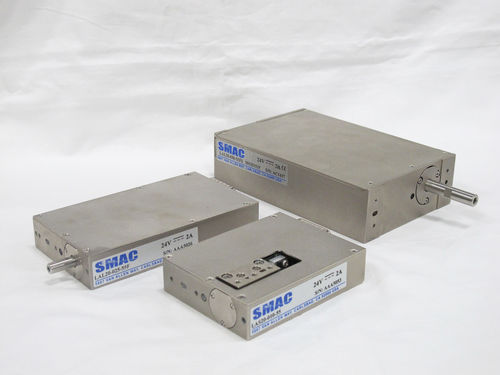

DC linear motor LAL series
Characteristics Type DC Voltage 48 V, 24 V Other characteristics compact, high-speed, direct-drive, low-voltage, programmable Force Max.: 500 N Min.: 6 N Stroke Max.: 150 mm(5.906 in) Min.: 25 mm(0.984 in)…
Stepper linear motor MM series
Characteristics Type stepper Voltage 0 – 60V Force 0.2 kgf Description Linear motor that provides positioning with a resolution of <200 nm under extreme environmental conditions *Customization…
DC linear motor UXXV G2 series
Characteristics Type DC, ironless Voltage 230 V, 320 V Other characteristics high-precision, high-performance, vacuum-compatible Speed Max.: 7.7 m/s(25.26 ft/s) Min.: 2.8 m/s(9.19 ft/s) Force 1,340 N, 2,010 N, 2,012…
DC linear motor LMG Series
Characteristics Type DC, iron-core Voltage 48 V Other characteristics compact, small Speed 15 m/s(49.21 ft/s) Force Max.: 3,630 N Min.: 66.6 N Stroke Max.: 335 mm(13.189 in) Min.: 95 mm(3.74 in)…
Iron-core linear motor LS series
Characteristics Type iron-core Other characteristics high-speed, high-precision Description INFRANOR’s Linear Motors are direct drives, capable of fast accelerations and high speeds, whilst providing unmatched precision and accuracy….
Synchronous linear motor IC76 Series
Characteristics Type iron-core, synchronous Voltage 380 V, 560V Other characteristics compact, small, three-phase Speed 4 m/s, 8 m/s(13.12 ft/s, 26.25 ft/s) Force Min.: 220 N Max.: 2,480 N Description…
Stepper linear motor U series
Characteristics Type stepper Voltage 6- 24V Other characteristics small Force 40 N, 70 N, 80 N Stroke 150 mm(5.906 in) Description Saia® linear motor series have enhanced…
Synchronous linear motor CLM-300
Characteristics Type synchronous Other characteristics U-shaped, small, permanent magnet Description CLM-300 ChangChuan CLM synchronous linear motor is suitable for short distance transmission and it has character of…
Three-phase linear motor L3S series
Characteristics Type DC, iron-core, synchronous Voltage multi-voltage Other characteristics air-cooled, liquid-cooled, flat, three-phase, permanent magnet Speed Max.: 8 m/s(26.25 ft/s) Min.: 0 m/s(0 ft/s) Force Max.: 15,750 N Min.: 150 N…
DC linear motor UMV G2 series
Characteristics Type DC, ironless Voltage 230 V, 320 V Other characteristics high-precision, high-performance, vacuum-compatible Speed Max.: 18.5 m/s(60.7 ft/s) Min.: 7 m/s(22.97 ft/s) Force 100 N, 200 N, 400…
Synchronous linear motor IC50 Series
Characteristics Type iron-core, synchronous Voltage 380 V, 560V Other characteristics high-speed, compact, three-phase Speed 5 m/s, 12 m/s(16.4 ft/s, 39.37 ft/s) Force Max.: 810 N Min.: 66 N Description…
Synchronous linear motor IC40 Series
Characteristics Type iron-core, synchronous Voltage 380 V, 560V Other characteristics high-speed, compact, three-phase Speed 6 m/s(19.69 ft/s) Force Min.: 45 N Max.: 220 N Description Experience unmatched power and…
DC linear motor FXZ series
Characteristics Type DC, synchronous, iron-core, ironless, AC, hybrid stepper, four-phase stepper, two-phase stepper Voltage multi-voltage Other characteristics low-noise, high-speed, high-precision, reinforced, coreless, modular, high-performance, stainless steel, custom,…
DC linear motor LMS
Characteristics Type DC, iron-core Other characteristics compact Force Max.: 3,640 N Min.: 273 N Stroke Max.: 335 mm(13.189 in) Min.: 95 mm(3.74 in) Description The LMS linear motors provide substantially higher…
