AC/DC

single-phase, DC

Type

synchronous

Configuration

with brake

Number of poles

4-pole

Other characteristics

high-torque

Power

8 W, 8.2 W, 13.4 W
(0.011 hp, 0.011 hp, 0.018 hp)

Torque

0.36 Nm, 0.775 Nm, 1.5 Nm, 2.95 Nm
(0.2655 ft.lb, 0.5716 ft.lb, 1.1063 ft.lb, 2.1758 ft.lb)

Rotational speed

3,000 rpm, 4,500 rpm
(18,849.56 rad.min-1, 28,274.33 rad.min-1)

Diameter

8 mm, 14 mm, 19 mm, 30 mm
(0.31 in, 0.55 in, 0.75 in, 1.18 in)

Description

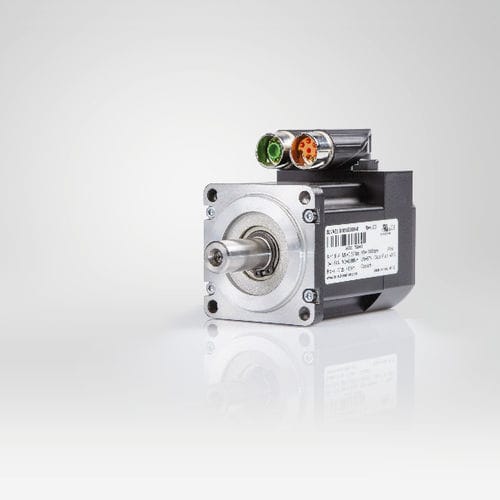

8LWA servo motors have a particularly high torque density. A new internal design helps the 8LWA, paired with an ACOPOS P3 servo drive, achieve 25% higher torque than comparable motors.

Can be used at elevations up to 4,000 meters.

Electrical connection
Available with built-in double angular connector or single-cable solution

Single-cable solution
The power, encoder signal and brake signal are all transferred over a single hybrid cable.
