AC/DC

AC

Type

synchronous

Voltage

230 V, 400 V, 48 V

Protection class

IP65, IP67

Configuration

compact, modular, slotless

Applications

applications

Other characteristics

high-speed, high-torque, standard

Intensity

Max.:  22.8 A

Min.:  1.4 A

Torque

Max.:  59 Nm
(43.5162 ft.lb)

Min.:  0.23 Nm
(0.1696 ft.lb)

Rotational speed

1,500 rpm, 3,000 rpm
(9,424.78 rad.min-1, 18,849.56 rad.min-1)

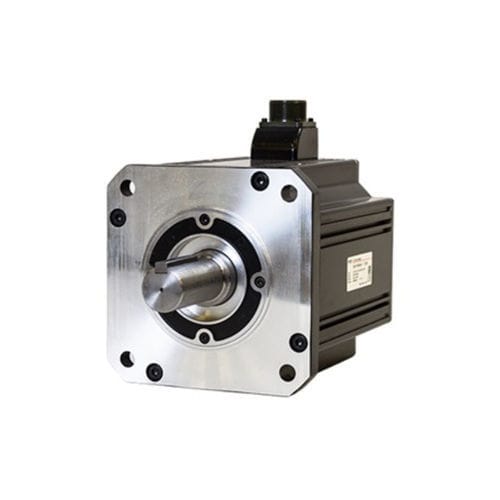

Description

The modular construction concept is the basis for the wide range of standard models.
The slotless stator design results in outstanding technical properties such as high speed, high torque, zero cogging, minimal torque ripple, high efficiency and high rigidity.
Thus, these motors are perfectly suited for various demanding servo applications.

Power
Stall torque 0.24 to 75 Nm
Size 38 to 192 mm

Executions
Wide range of standard models
Customized versions
CE compliant

Features
Compact size
High torque
High speed
No cogging
Modular construction
