AC/DC

AC

Type

EC

Protection class

maintenance-free

Configuration

compact

Applications

blower, industrial

Other characteristics

multi-speed, constant speed, high-efficiency, low-noise

Power

0.25 W, 0.33 W, 0.5 W
(0 hp, 0.25 hp, 0.5 hp)

Rotational speed

1,200 rpm, 1,800 rpm
(7,539.82 rad.min-1, 11,309.73 rad.min-1)

Description

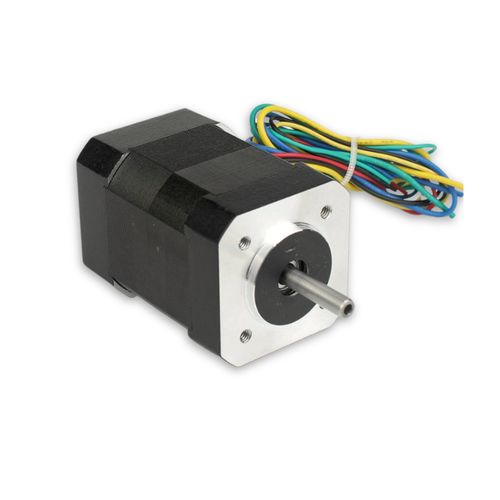

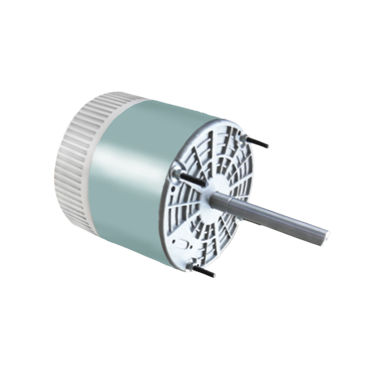

GW EC Motor is multi-speed, constant torque and brushless The EC Motor is High efficiency at all speed, efficiency up to 80% The electric motor is soft start life span and linear speed control

Features :

· Constant speed and constant torque control

· Speed range 300rpm～1800rpm

· Higher efficiency, 82% or above

· Lower operating noise

· Power range: 1/4, 1/3, 1/2HP

· Apply to HVAC, blower, air purification equipment and others
