AC/DC

AC

Type

stepper

Voltage

220 V

Power

1.5 kW
(2.039 hp)

Torque

Max.:  18 Nm
(13.2761 ft.lb)

Min.:  6 Nm
(4.4254 ft.lb)

Rotational speed

2,500 rpm
(15,707.96 rad.min-1)

Description

Product Description

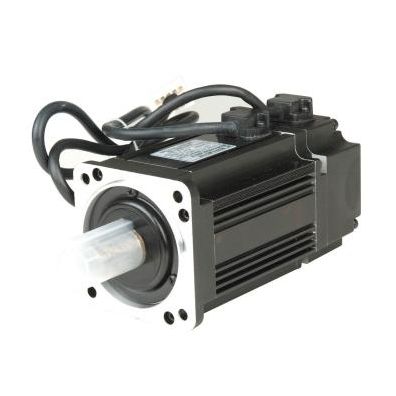

1.5KW,AC220V Middle Inertia Servo Motors,SWS13150CC Middle Inertia Servo Motors manufacturer.

Model No.
SWS13150CC

Rated speed
2500r/min

Compatible Servo Driver
SW7AA030M

Flange Specification(mm)
130

Rated Power(KW)
1.5

Rated Torque(N.M.)
6.00

Maximum Torque(N.M.)
18.00

Rated Current(A)
6.00

Rated Voltage(V)
AC220

Inertia(kgm2x10-4)
12.60

Wire Quantity of Encode (PPR)
2500

Application Environment
Temperature: Work temperature: 0℃~ 40℃，storage temperature: -20℃~ 80℃
Humidity: Relative Humidity< 90%(Non-Frost)
Air: Indoor condition, less than 1000m high, non corrosive ,non flammable gas and dust and oil-mist

Shaft Diameter(mm)
22

Length(mm)
179

Weight(Kg)
8.90
