AC/DC

AC

Type

brushless

Voltage

380 V, 480 V, 200 V, 240 V

Protection class

IP65

Configuration

compact

Applications

for robotics

Other characteristics

high-torque, low-inertia, low-frequency

Torque

Max.:  85 Nm
(62.6928 ft.lb)

Min.:  0.7 Nm
(0.5163 ft.lb)

Rotational speed

Max.:  6,000 rpm
(37,699.11 rad.min-1)

Min.:  1,000 rpm
(6,283.19 rad.min-1)

Description

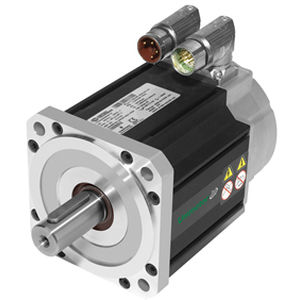

Unimotor hd is a high dynamic brushless AC servo motor range with frames from 55mm to 190mm.

Unimotor hd is a high peak torque, low inertia motor range. The motor is designed for high dynamic applications requiring hard accelerations and decelerations including:
• Flying shear
• Pick and place
• Cut-to-length
• Industrial robotics

Compact but powerful
Unimotor hd provides an exceptionally compact, low inertia solution for applications where very high torque is required during rapid acceleration and deceleration profiles.

High torque to inertia ratio
Unimotor hd delivers very low inertia at the rotor with up to 300% peak overload for maximum dynamic performance.

Segmented Stator Design
For increased compactness and high dynamics

Larger Shafts
For increased torsional rigidity

Geared solution available
Dynabloc Geared Servo Motors
