AC/DC

AC

Type

synchronous

Voltage

400 V, 230 V

Protection class

IP65, IP67, maintenance-free

Configuration

compact

Number of poles

20-pole

Applications

for robotics, for the automotive industry, for marine applications, military

Other characteristics

high-torque, low-inertia

Intensity

2.3 A

Torque

2.5 Nm
(1.8439 ft.lb)

Rotational speed

3,000 rpm
(18,849.56 rad.min-1)

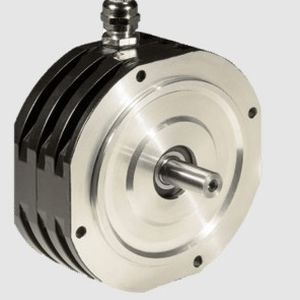

Description

• Our most sold motor , HDD 09J, with a rated speed 3000 rpm, rated torque 2,3 Nm at a rated current 2.3A and a compact length of 59,6 mm.
• Weight is only 2,4 kg.
• Resolver, Hiperface, EnDat protocol and a number of drive compatible drive pinouts.
• The motors can be supplied with or without brake.
• IP 65 as a standard be can be ordered with IP 67.
• For further information see datasheet for HDD 09J.

HDT 09J Product Data:
• Rated speed [rpm]: 3000
• Low-speed torque [Nm]: 2.8
• Rated torque [Nm]: 2.5
• Peak torque [Nm]: 7.3
• Rated current [A]: 2.3
• Length* [mm]: 59.6
• Flange size [mm]: 92
• Mass** [kg]: 2.4
• Inertia [kgcm^2]: 2.8
• Shaft dia [mm]: 19 j6

* Without Transducer and brake
** With resolver feedback system
