AC/DC

AC

Type

brushless

Voltage

100 V

Protection class

IP65

Configuration

with brake

Other characteristics

high-inertia, with speed controller, UL certified

Power

50 W, 100 W, 200 W, 400 W, 750 W
(0.068 hp, 0.136 hp, 0.272 hp, 0.544 hp, 1.02 hp)

Intensity

Min.:  0.7 A

Max.:  4.7 A

Torque

Min.:  0.159 Nm
(0.1173 ft.lb)

Max.:  2.39 Nm
(1.7628 ft.lb)

Rotational speed

Min.:  0 rpm
(0 rad.min-1)

Max.:  5,500 rpm
(34,557.52 rad.min-1)

Operating temperature

Min.:  0 °C
(32 °F)

Max.:  40 °C
(104 °F)

Description

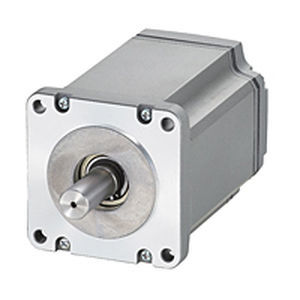

The NX Series is a Motor, Driver and Gearhead solution in one package. Planetary geared and electromechanical brake options are also available and come pre-assembled. Each package features a high performance servo system with 4 control modes and is capable of high accuracy control. Smooth operation can be achieved in high inertia loads or belt drive applications without manual tuning. 3 meter (9.8 ft.) motor and encoder cables are included. Four Control Modes:
• Position
• Torque
• Tension
