AC/DC

AC

Type

synchronous

Voltage

240 V, 480 V

Configuration

with brake

Applications

industrial, for machine tools, for the textile industry

Other characteristics

high-speed, motion control, EtherCAT, NEMA

Power

Min.:  0.32 kW
(0.435 hp)

Max.:  8.58 kW
(11.666 hp)

Torque

Min.:  0.48 Nm
(0.354 ft.lb)

Max.:  52.2 Nm
(38.5007 ft.lb)

Rotational speed

Min.:  1,800 rpm
(11,309.73 rad.min-1)

Max.:  8,000 rpm
(50,265.48 rad.min-1)

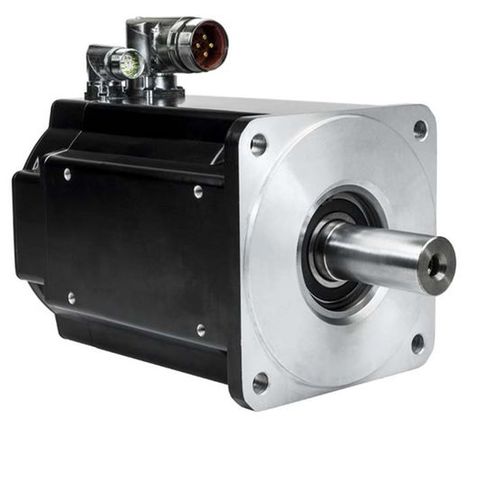

Description

Perfect for a wide variety of servo motion needs including industrial robots, machine tools, textile/packing machinery and similarly dynamic motion control applications

Features

Built on open EtherCAT communications
Multiple options to best fit your application
Functional replacements for FANUC motors
Low inertia for quick positioning
Expandable design with up to 50 coordinated axes of control in a single system: 40 physical and 10 virtual
Integrated with PAC Machine Edition Software for consistent programming
Optional single cable connection for simple maintenance and installation
Exceptionally low cogging and harmonic distortion for consistently smooth performance

Specifications

Functional Replacement for following FANUC Motors
Alpha 22 / 4000HVis

Frame Size
7
