AC/DC

three-phase, single-phase

Type

synchronous

Voltage

220 V, 240 V

Protection class

IP65

Other characteristics

high-precision, with integrated controller

Power

Min.:  0.4 W
(0.001 hp)

Max.:  1,500 W
(2.039 hp)

Description

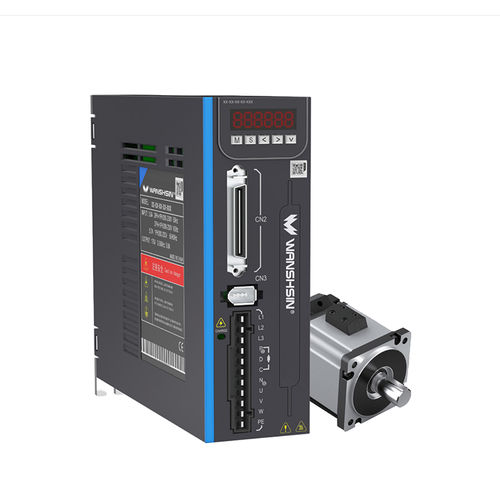

Ws Servo Motor 8 Servo Drive uses a high-precision online inertia identification algorithm, and theinertiaidentification accuracy can be up to +5%, At the same time, it can automatically set the position loop gain, speed loop gain, speed loop integral and torque low-pass filter time constant according to the rigid value set by the user, so as to realize the automati adjustment of servo gain. At the same time,the advanced current observe and current prediction algorithm are adopted, and the high-perfomance servo motor independently designed by our company makes the whole servo system reach a high speed loop bandwidth.

Advantage
Easier to debug the parameters, there is no need to set the gain parameters of position loop and speed loop. Only the rigid setting of real-time automatic gain is required by parameter Pr003

Workable for 23 bit single/multi-turn encoders, position accuracy up to 0.15 arc seconds

The unique real-time automatic vibration suppression function can automatically suppress vibration without the input of vibration frequency
